Ultra-Rugged, High-Performance Mobile Printing for Demanding Environments

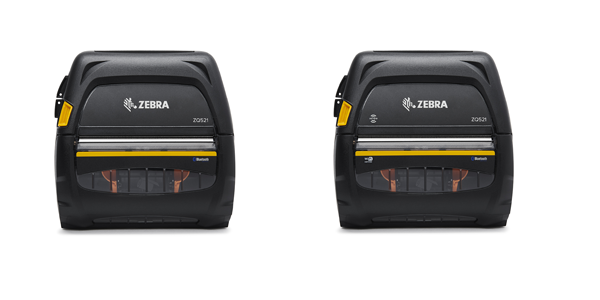

The Zebra ZQ500 Series mobile printers, including the ZQ511 and ZQ521, are built for extreme durability, superior connectivity, and high-quality printing in challenging conditions. With rugged IP54-rated protection, MIL-STD 810G certification, and resistance to drops, shocks, and extreme temperatures, these printers are ideal for field service, transportation, warehousing, and military applications.
Key Features
-
Print Method: Direct Thermal for barcode, text, and graphics printing
-
Unmatched Durability: IP54-rated, 6.6 ft./2 m drop-tested, MIL-STD 810G certified
-
Flexible Connectivity: Bluetooth 4.1, USB, and optional Wi-Fi 802.11ac with fast roaming
-
Power Smart Print Technology™: Optimizes battery life and print speed
-
Powerful Battery Performance: 3250 mAh PowerPrecision+ battery (optional 6500 mAh extended battery)
-
Versatile Printing Options: Supports linerless printing, RFID encoding, and multiple media types
-
User-Friendly Display: Simple LCD with large battery and wireless status icons
-
Print Orientation: Supports vertical and horizontal printing
-
Zebra Print Touch & NFC: Simplifies Bluetooth pairing and web-based setup
Physical Specifications
| Model |
Dimensions (L x W x H) |
Weight (with Standard Battery) |
Weight (with Extended Battery) |
| ZQ511 |
150 mm x 120 mm x 62 mm (5.9" x 4.7" x 2.4") |
0.63 kg (1.39 lbs) |
0.72 kg (1.62 lbs) |
| ZQ521 |
158 mm x 155 mm x 67 mm (6.2" x 6.1" x 2.6") |
0.79 kg (1.73 lbs) |
0.89 kg (1.96 lbs) |
Printer Specifications
-
Operating System: Link-OS™
-
Resolution: 203 dpi (8 dots/mm)
-
Memory: 256MB RAM, 512MB Flash (8MB RAM, 64MB Flash user-available)
-
Maximum Print Width:
-
ZQ511: 72 mm (2.83")
-
ZQ521: 104 mm (4.09")
-
Maximum Print Speed: 127 mm/sec (5 inches per second) in Draft Mode
-
Print Length: Up to 39 inches
-
Media Sensors: Black mark and gap sensing (fixed center position, no gap sensing on RFID models)
Media & RFID Compatibility
-
Minimum & Maximum Media Width:
-
ZQ511: 35 mm – 80 mm (1.38" – 3.15")
-
ZQ521: 50.8 mm – 113 mm (2.0" – 4.45")
-
Maximum Media Roll Diameter:
-
ZQ511: 51 mm (2.0")
-
ZQ521: 57 mm (2.24")
-
Media Thickness:
-
Labels: Up to 0.1600 mm (0.0063")
-
Receipts/Tags: Up to 0.1397 mm (0.0055")
-
Supported Media Types: Receipts, gap/black-mark labels, tags, linerless labels, RFID (ZQ511R/ZQ521R)
Operating Conditions
| Condition |
Specification |
| Operating Temperature |
-20°C to 55°C (-4°F to 131°F) |
| Charging Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-30°C to 66°C (-22°F to 150°F) |
| Operating Humidity |
10% – 90% non-condensing |
| Drop & Shock Resistance |
6.6 ft./2 m drops to concrete |
| Tumble Test |
1300 free falls from 3.3 ft./1 m |
| IP Rating |
IP54 (dust & water resistance) |
Connectivity & Interface Options
Wireless Connectivity
-
Wi-Fi: 802.11ac with WPA, WPA2, AES encryption, EAP-FAST, PEAP, LEAP support
-
Bluetooth: Bluetooth 5.2-ready, Bluetooth 4.1 (Classic & BLE)
-
Fast Roaming: Supports 802.11r, PMK caching, OKC
Wired & NFC Connectivity
-
USB: USB 2.0 On-The-Go (OTG) port with optional strain relief
-
NFC: Zebra Print Touch for quick Bluetooth pairing
Barcode & Font Capabilities
Supported 1D Barcodes
Codabar, Code 39, Code 93, Code 128, EAN-8, EAN-13, UPC-A, UPC-E, Interleaved 2-of-5, GS1 DataBar, and more
Supported 2D Barcodes
QR Code, PDF417, DataMatrix, MaxiCode, Aztec Code, and more
Fonts & Graphics
-
Standard Fonts: 25 bitmapped fonts, 1 scalable font (CG Triumvirate Bold Condensed)
-
Multilingual Support: Latin, Cyrillic, Hebrew, Arabic, Chinese, Japanese, Thai, Vietnamese, and Korean fonts
Print DNA Software Suite
-
Faster Setup & Integration: Simplifies printer deployment and management
-
Remote Management Tools: Monitor and manage printers remotely
-
Advanced Security Features: Protects against unauthorized access and threats
For more details, visit www.zebra.com/zebradna
What’s Included in the Box?
- ZQ511 or ZQ521 Mobile Printer
- 3250 mAh PowerPrecision+ Battery
- USB Cable
- Quick Start Guide & Regulatory Guide
Warranty & Support
-
2-Year Limited Warranty – Covers defects in workmanship and materials
-
Zebra OneCare™ Maintenance Plans:
- 24/7 technical support
- Advance replacement and express shipping
- Comprehensive coverage, including accidental damage
For full warranty details, visit www.zebra.com/warranty
Why Choose the Zebra ZQ500 Series?
-
Designed for extreme environments with rugged military-grade durability
- Fast, high-quality mobile printing for field operations, logistics, and retail
- Multiple connectivity options, including USB, Bluetooth, and Wi-Fi
- Extended battery options for all-day performance
Upgrade to the ZQ500 Series today for reliable, on-the-go printing in any environment.
